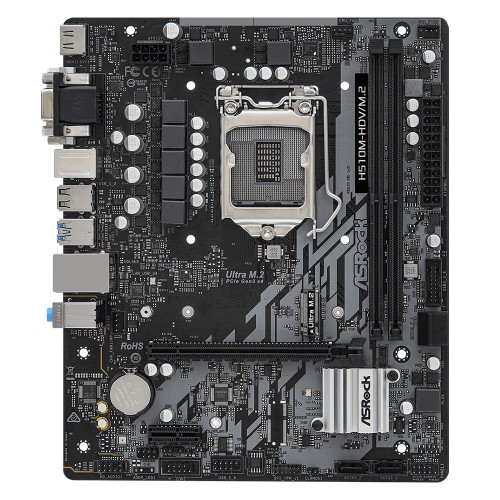

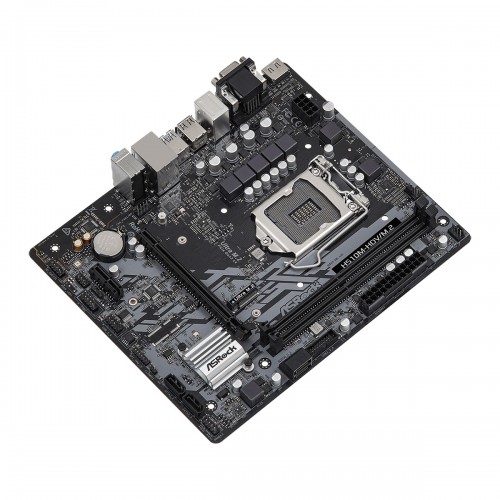

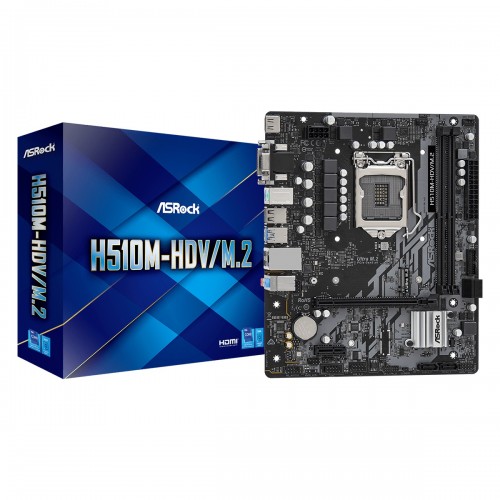

ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard

ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard
ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard
ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard
ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard
Up coming
ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard
ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard
ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard
ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard
ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard
  • Stock: Up coming
  • Model: ASRock H510M-HDV
৳ 7,700
Ex Tax: ৳ 7,700

Product Specification

Basic Information

Supported CPU
- Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200)
- Digi Power design
- 5 Power Phase design
- Supports Intel Turbo Boost Max 3.0 Technology
Chipset
Intel H510
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCST, VCCIN AUX Voltage Multi-adjustment
Form Factor
- Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm
- Solid Capacitor design
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Supports Surge Protection
PCI
11th Gen Intel Core Processors
- 1 x PCI Express 4.0 x16 Slot
10th Gen Intel Core Processors
- 1 x PCI Express 3.0 x16 Slot

- 1 x PCI Express 3.0 x1 Slots
M.2 Socket
1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Memory
Dual Channel DDR4 Memory Technology
Type
Dual Channel DDR4 Memory Technology
Slots
2 x DDR4 DIMM Slots
Supported Memory
- Supports DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Supports Intel Extreme Memory Profile (XMP) 2.0
Maximum Memory
64GB
Graphics
- 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
- Three graphics output options: D-Sub, DVI-D and HDMI**
- Supports Triple Monitor
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.3 with DVI-D and HDMI 2.0 Ports
Connector & Ports

HDMI
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
D-Sub (s)
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
DVI-D (s)
Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
USB (s)
Connector:
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

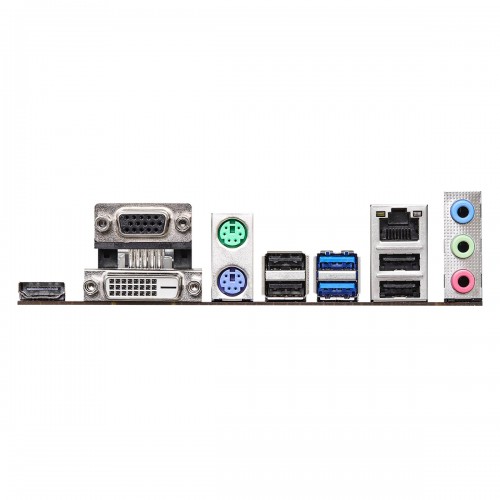

Rear Panel I/O:
- 4 x USB 2.0 Ports (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
LAN Port (s)
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Supported Storage
- 4 x SATA3 6.0 Gb/s Connectors, support Intel Rapid Storage Technology 18, NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s
Audio
Connector:
- 1 x Front Panel Audio Connector

Rear Panel I/O:
- HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports
- 1 x COM Port Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
- 1 x Chassis Fan Connector (4-pin)
* The Chassis Fan supports the Chassis fan of maximum 1A (12W) fan power.
- 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
* CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
TPM (Trusted Platform Module )
- 1 x SPI TPM Header
Warranty Information

Manufacturing Warranty
03 years warranty
Others

Special Features
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High-Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
Bundled Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN


Product Description

ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard

The ASRock H510M-HDV/M.2 Micro ATX Motherboard Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors. It supports DDR4 3200MHz (OC). It comes with 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 and 3 Graphics Output Options: HDMI, DVI-D, D-Sub. Plus the HDMI port supports 4K resolution. ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Conventional PC systems processors can only access a fraction of graphics memory and limit system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck, and increase performance. It comes with a 7.1 CH HD Audio (Realtek ALC897 Audio Codec). It features 4 SATA3 and 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3). The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs. It also has 4 x USB 3.2 Gen1 (2 x Rear, 2 x Front) and 6 x USB 2.0 (4 x Rear, 2 x Front). It is equipped with Intel Gigabit LAN that provides the best throughput performance, lower CPU utilization, enhanced stability, and is able to deliver the ultimate network experience to users. Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop. It has 3 years of warranty.



What is The ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard Price in bd?

The latest price of ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard in Bangladesh.

PC House offers you ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard with the best price in Bangladesh. Which is your budget-friendly. We also offers you free gift or free installation with this ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard Order Online for nationwide cash on delivery or visit our Shop. Follow us on Facebook for regular updates and Hot Sale. Subscribe our Youtube channel for reviews.

You can buy the ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard at best price from our website or visit any of our showrooms.
