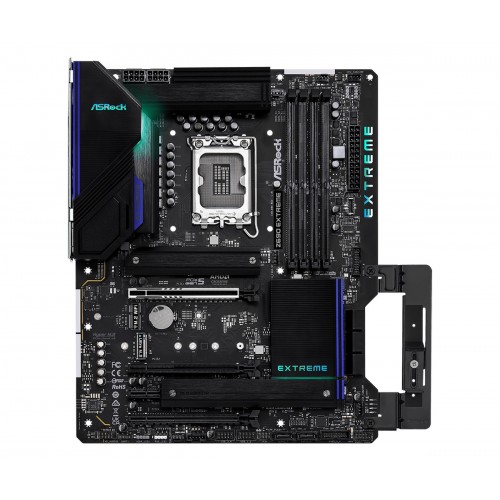

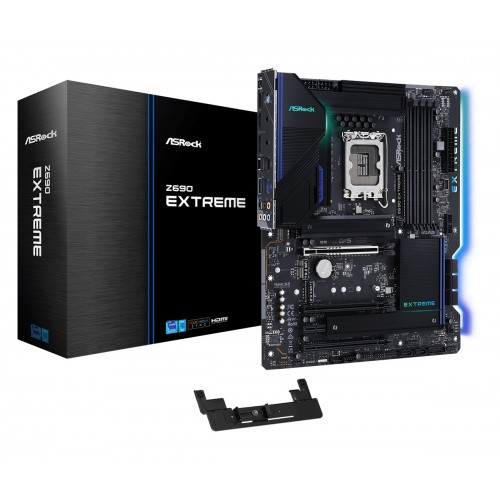

ASRock Z690 Extreme 12th Gen ATX Motherborad

ASRock Z690 Extreme 12th Gen ATX Motherborad
ASRock Z690 Extreme 12th Gen ATX Motherborad
ASRock Z690 Extreme 12th Gen ATX Motherborad
ASRock Z690 Extreme 12th Gen ATX Motherborad
ASRock Z690 Extreme 12th Gen ATX Motherborad
  • Stock: In Stock
  • Model: ASRock Z690 Extreme 12th
৳ 32,300
Ex Tax: ৳ 32,300
*Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch.*

Product Specification


Basic Information

Supported CPU
- Supports 12th Gen Intel Core Processors (LGA1700)
- Digi Power design
- 13 Power Phase design
- Supports Intel Hybrid Technology
- Supports Intel Turbo Boost Max 3.0 Technology
Chipset
Intel Z690
BIOS
- 256Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 2oz Copper PCB
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- 15μ Gold Audio Connector
- Nahimic Audio
Expansion Slots

PCI
- 3 x PCIe x16 Slots (PCIE1/PCIE2/PCIE4: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE2); triple at Gen5x16 (PCIE1) / Gen4x4 (PCIE2) / Gen3x4 (PCIE4))
- 1 x PCIe Gen3x1 Slot
- Supports AMD Quad CrossFireX and CrossFireX
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
M.2 Socket
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode
- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Memory

Type
DDR4
Slots
4 x DDR4 DIMM Slots
Supported Memory
Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots
Maximum Memory
128GB
Graphics

Graphics
- Intel Xe Graphics Architecture (Gen 12)
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @60Hz / 5K (5120x3200) @120Hz
- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Connector & Ports

HDMI
1 x HDMI Port
Display Port (s)
1 x DisplayPort 1.4
USB (s)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
LAN Port (s)
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports UEFI PXE
Wireless Communication module
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Supported Storage
- 8 x SATA3 6.0 Gb/s Connectors
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2230/ 2242/ 2260/ 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode
Audio
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Internal I/O Ports
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x Optical SPDIF Out Port
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- 1 x BIOS Flashback Button
TPM (Trusted Platform Module )
1 x SPI TPM Header
Warranty Information

Manufacturing Warranty
3 years
Special Features
ASRock USB 3.2 Gen2
- ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- 60A SPS (Smart Power Stage)
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Shaped PCB Design
- Matte Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
2.5G LAN
802.11ax Wi-Fi 6E
ASRock Auto Driver Installer
ASRock Steel Slot
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Ultra USB Power ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
Bundled Software
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
- Supports Dragon 2.5G LAN Software


Product Description


ASRock Z690 Extreme 12th Gen ATX Motherboard Price in bd

ASRock Z690 Extreme ATX Motherboard supports 12th Gen Intel Core Processors, Socket LGA1700. This motherboard features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. In this motherboard, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards, and also HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. This Z690 Extreme motherboard is capable of accomadating multiple M.2 storage devices, This Motherboard also support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Here, latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, It also providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. This motherboard comes with a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. In this ASRock Z690 Extreme, the intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. to Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet. The Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience. The latest ASRock Z690 Extreme comes with 03 years warranty.


What is The ASRock Z690 Extreme 12th Gen ATX Motherborad Price in bd?

The latest price of ASRock Z690 Extreme 12th Gen ATX Motherborad in Bangladesh.

PC House offers you ASRock Z690 Extreme 12th Gen ATX Motherborad with the best price in Bangladesh. Which is your budget-friendly. We also offers you free gift or free installation with this ASRock Z690 Extreme 12th Gen ATX Motherborad Order Online for nationwide cash on delivery or visit our Shop. Follow us on Facebook for regular updates and Hot Sale. Subscribe our Youtube channel for reviews.

You can buy the ASRock Z690 Extreme 12th Gen ATX Motherborad at best price from our website or visit any of our showrooms.
