| BASIC INFORMATION | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|
| Chipset | Intel B760 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor: 30.5cm x 24.4cm | |
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
|
| Memory | ||
| Memory Type | DDR5 | |
| Slots | 4 | |
| Supported Memory | Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | up to 192 GB (48 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Connector & Ports | ||
| HDMI | 1x HDMI |
|
| Display Port | 1x DisplayPort | |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless | Intel Wi-Fi 6E AX211 (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek Wi-Fi 6E RTL8852CE (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out 2 x audio jacks |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
|

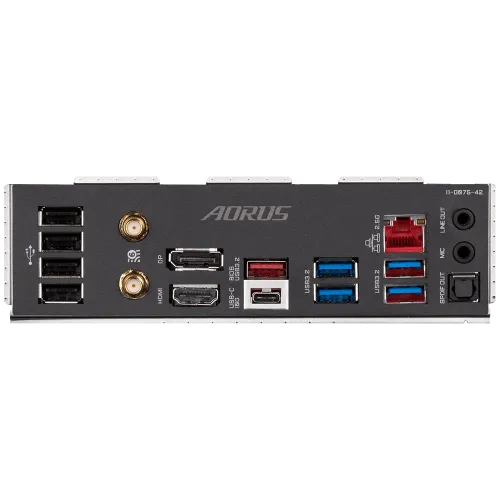

| USB Port | Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
|
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 years |
|

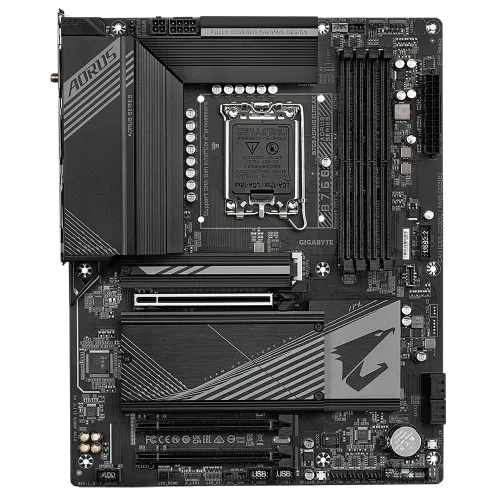

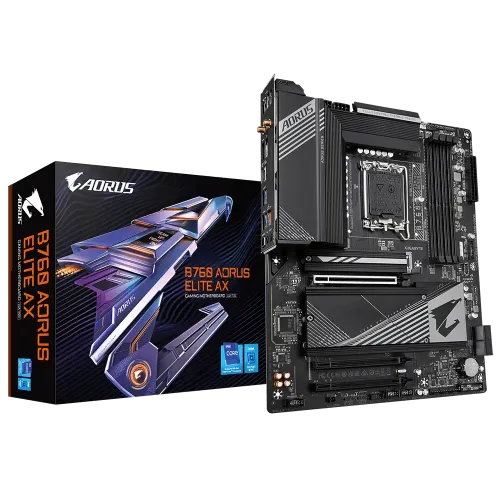

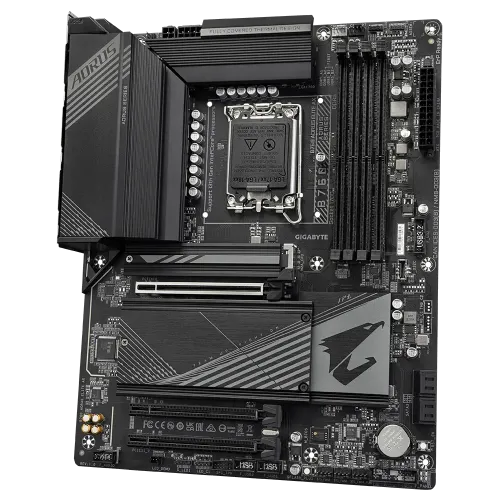

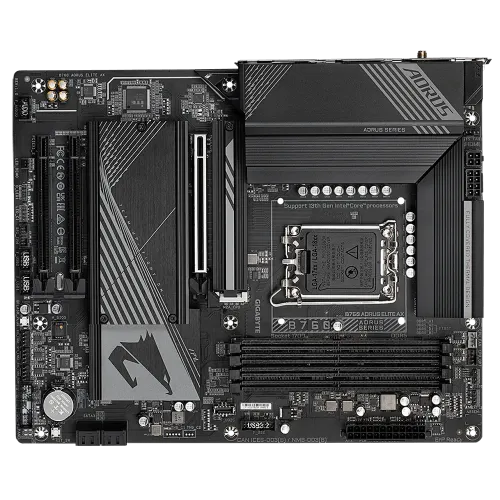

With support for Intel Socket LGA 1700, the GIGABYTE B760 AORUS ELITE AX Motherboard is made for 13th and 12th generation processors. Unmatched performance and stability are provided by the motherboard's Twin 12*+1+1 Phases Digital VRM Solution. The XMP 3.0 Memory Module with Dual Channel DDR5 with 4 SMD DIMMs provide dependable and effective memory performance. Cooling performance is improved by the Smart Fan 6 technology, which has hybrid fan headers with FAN STOP and various temperature sensors. Furthermore, Q-Flash Plus makes BIOS upgrades convenient and simple to use by eliminating the requirement to install the CPU, RAM, and graphics card.
At PC House, we're dedicated to giving our clients the greatest products at competitive costs. Because of this, we're pleased to provide the affordable Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard. Furthermore, you can feel secure knowing that your investment is safeguarded thanks to the three-year warranty.
Gigabyte B760 AORUS ELITE AX DDR5 motherboard in Bangladesh at competitive prices. Featuring advanced DDR5 support, this motherboard enhances performance and stability for gaming and high-end applications. With superior build quality and extensive connectivity options, it’s a top choice for PC builders and enthusiasts. Stay ahead of the game with this reliable and future-proof motherboard. Check local and online retailers for the best Gigabyte B760 AORUS ELITE AX DDR5 price in BD.
The B760 motherboard is a versatile component designed to support Intel’s 12th and 13th generation processors. It features a range of connectivity options, including multiple USB ports, high-speed memory support, and robust build quality, making it a solid choice for both gaming and productivity tasks. In Bangladesh, the B760 motherboard is available from various retailers, with prices reflecting factors like brand, features, and availability. This motherboard offers an excellent balance of performance and value, making it a popular choice among enthusiasts and everyday users looking to upgrade their systems. Always compare options to find the best deal that fits your needs.
Advanced CPU Support: Compatible with 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors via the LGA1700 socket.
High-Speed Memory: Supports DDR5 memory with speeds up to 7600 MT/s (overclocked) and a maximum capacity of 192 GB.
Next-Gen Connectivity: Equipped with Intel Wi-Fi 6E AX211 or RTL8852CE for high-speed wireless networking, Bluetooth 5.3, and multiple USB ports including USB Type-C with USB 3.2 Gen 2 support.
Robust Expansion Options: Includes a PCIe 4.0 x16 slot for high-performance graphics cards and additional PCIe 3.0 x16 slots for other expansion needs.
Multiple Storage Solutions: Features three M.2 slots and four SATA 6Gb/s connectors, supporting various RAID configurations (0, 1, 5, 10) for enhanced storage performance and redundancy.
High-Resolution Graphics: Offers integrated graphics support with HDMI 2.0 and DisplayPort 1.2, capable of handling resolutions up to 4096x2304@60 Hz.
Versatile Cooling Options: Includes multiple fan headers and water cooling pump headers to ensure optimal system cooling.
Audio and Visual Enhancements: Realtek Audio CODEC for high-definition 2/4/5.1/7.1-channel audio with support for S/PDIF Out.
RGB and LED Support: Two addressable LED strip headers and two RGB LED strip headers for customizable lighting effects.
Enhanced BIOS Features: Comes with a licensed AMI UEFI BIOS, Q-Flash, and Q-Flash Plus for easy BIOS updates and system management.
Bundled Software: Includes Norton Internet Security (OEM version) and LAN bandwidth management software for added security and network performance optimization.
Trusted Platform Module (TPM): Provides support for a TPM header to enhance system security.
In terms of functionality and overall performance, the Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 is inferior to the GIGABYTE X670 AORUS ELITE AX DDR5. AMD Ryzen 7000 series CPUs are supported by the X670 chipset, which also offers better overclocking capability, PCIe 5.0 compatibility, and more sophisticated networking options. The X670 offers better performance and future-proofing, but the B760 is better suited for Intel CPUs.
High-Performance Gaming: With support for DDR5 memory and PCIe 4.0, it delivers excellent performance for gaming and high-resolution graphics.
Content Creation: Its high-speed memory support and multiple M.2 slots make it ideal for demanding tasks like video editing and 3D rendering.
Productivity: The motherboard's extensive connectivity options, including USB Type-C and high-speed networking, enhance productivity tasks and multitasking.
Future-Proofing: It supports the latest Intel CPUs and offers advanced features, making it a good choice for future-proofing a PC build.
With support for fast DDR5 memory, PCIe 4.0, and a wide range of connectivity choices, including USB Type-C and Intel Wi-Fi 6E, the **Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard** shines. It is perfect for gaming and content creation because it has several M.2 and PCIe slots, which allow for strong expansion. Its features, which guarantee a strong and adaptable build, include sophisticated cooling choices and RGB lighting that can be customized.
