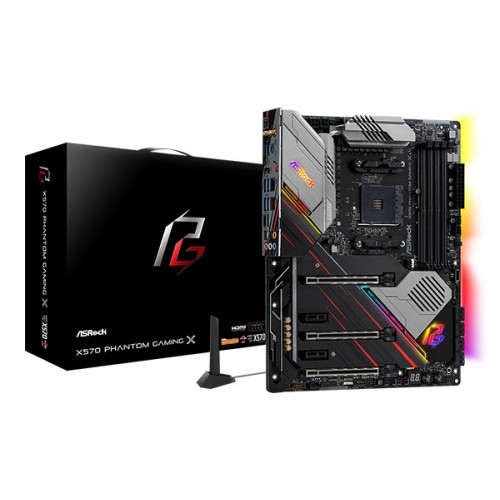

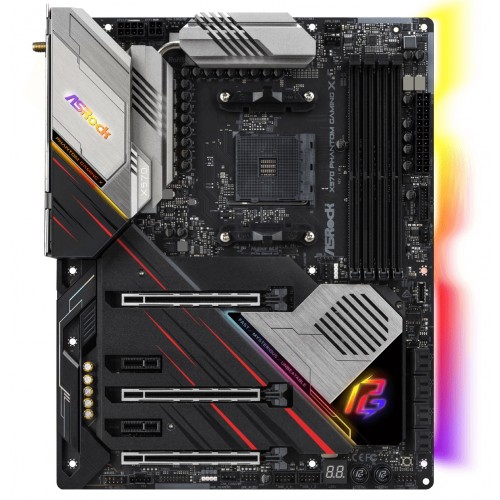

Asrock X570 Phantom Gaming X AMD Motherboard

Asrock X570 Phantom Gaming X AMD Motherboard
Product code
1140
Brand
ASRock
Product model X570 Phantom Gaming X AMD
Warranty 3 years
Total Reviews

Upcomming

***অর্ডার করার পূর্বে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে।
Basic Information
Chipset AMD Premium X570
Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec), - Premium Blu-ray Audio support, - Supports Surge Protection, - Nichicon Fine Gold Series Audio Caps, - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets), - Pure Power-In, - Direct Drive Technology, - PCB Isolate Shielding, - Impedance Sensing on Rear Out port, - Individual PCB Layers for R/L Audio Channel, - Gold Audio Jacks, - 15μ Gold Audio Connector, - Supports Creative Sound Blaster Cinema 5
CPU - AMD AM4 socket, - Intersil Digital PWM, - 14 Power Phase design
BASIC INFORMATION
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support, - Supports "Plug and Play", - ACPI 5.1 compliance wake up events, - Supports jumperfree, - SMBIOS 2.3 support, - CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP, Voltage Multi-adjustment
Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Memory
Memory Type: Dual Channel DDR4 Memory Technology, Slots: 4 x DDR4 DIMM Slots, Supported Memory: - AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, - AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory, Maximum Memory: 128GB
Storage - 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug, - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)*, - 1 x Hyper M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s)*, - 1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)
Graphics
Graphics - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU, - DirectX 12, Pixel Shader 5.0, - Shared memory default 2GB. Max Shared memory supports up to 16GB. - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required), - Supports HDR (High Dynamic Range) with HDMI 2.0, - Supports HDCP 2.2 with HDMI 2.0 Port, - Supports 4K Ultra HD (UHD) playback with HDMI 2.0 Port, - Supports Microsoft PlayReady
Connector & Ports
HDMI 1 x HDMI Port
LAN - Gigabit LAN 10/100/1000 Mb/s, - Giga PHY Intel® I211AT, - Supports Wake-On-LAN, - Supports Lightning/ESD Protection, - Supports Energy Efficient Ethernet 802.3az, - Supports PXE
Internal I/O Ports - 2 x Antenna Ports, - 1 x PS/2 Mouse/Keyboard Port, - 1 x HDMI Port, - 1 x Optical SPDIF Out Port, - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection), - 6 x USB 3.2 Gen1 Ports (Supports ESD Protection), - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED), - 1 x Clear CMOS Button, - 1 x BIOS Flashback Button, - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
USB Port - 1 x Optical SPDIF Out Port, - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection), - 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
WARRANTY INFORMATION
Manufacturing Warranty 03 years

Asrock X570 Phantom Gaming X AMD Motherboard

Welcome to the new Wi-Fi standard! ASRock’s motherboard will be the 1st product coming with next generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well. The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock’s exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely. ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well. Forged with aluminum alloy heatsink top cover that effectively improves heat dissipation. Underneath is the next generation PCI Express 4.0 Hyper M.2 Socket, with twice the transfer speed of the previous 3rd Generation. The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO. Strengthens the motherboard to prevent bending caused by heavy coolers or graphics cards with better airflow and enhanced stability.

Wi-Fi 6 802.11ax

Welcome to the new Wi-Fi standard! ASRock’s motherboard will be the 1st product coming with next generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.

Phantom Gaming 2.5 Gb/s LAN

The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

STEEL SLOT WITH NEW-GEN PCI EXPRESS 4.0

The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock’s exclusive Steel Slot with extra anchor points are re

Quick Compare

Product Details
Product Asrock X570 Phantom Gaming X AMD Motherboard ASUS ProArt B650-CREATOR AM5 DDR5 ATX Motherboard GIGABYTE X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard MSI MPG Z690 EDGE WIFI DDR4 LGA 1700 ATX 12th Gen Intel Motherboard
Image Asrock X570 Phantom Gaming X AMD Motherboard ASUS ProArt B650-CREATOR AM5 DDR5 ATX Motherboard GIGABYTE X670 AORUS ELITE AX DDR5 AMD AM5 ATX Motherboard MSI MPG Z690 EDGE WIFI DDR4 LGA 1700 ATX 12th Gen Intel Motherboard
Price 39,500৳ 44,550৳ 39,900৳ 42,800৳ 38,800৳ 42,700৳ 40,490৳
Model X570 Phantom Gaming X AMD ProArt B650-CREATOR X670 AORUS ELITE AX MPG Z690 EDGE WIFI
Brand ASRock ASUS Gigabyte MSI
Availability Upcoming In Stock In Stock In Stock
Rating
Based on 0 reviews.

Based on 1 reviews.

Based on 1 reviews.

Based on 1 reviews.

Write a review

Note: HTML is not translated!
Bad Good

What is the Asrock X570 Phantom Gaming X AMD Motherboard price in bd 2024?
